The module adopts top-tier RF chips that extend RF signal coverage from 1 GHz to 9 GHz, together with a high-precision VCO that locks the center frequency precisely with a frequency error of less than 0.01 MHz. A high-precision crystal oscillator keeps frequency drift within 0.1 MHz over the wide temperature range of -40°C to 100°C, delivering higher transmission efficiency.
Key Features
- 1-9 GHz Full-Band Coverage — 8001 selectable channels, 100W PA support for extreme-range links
- 8001 Selectable Channels — arbitrary frequency hopping from 1 GHz to 9 GHz, full-band coverage
- 100W PA Expansion — external PA support delivers up to 100W output for 100+ km communication links
- IRC/Tramp Protocol Support — SmartAudio-compatible control with real-time power adjustment

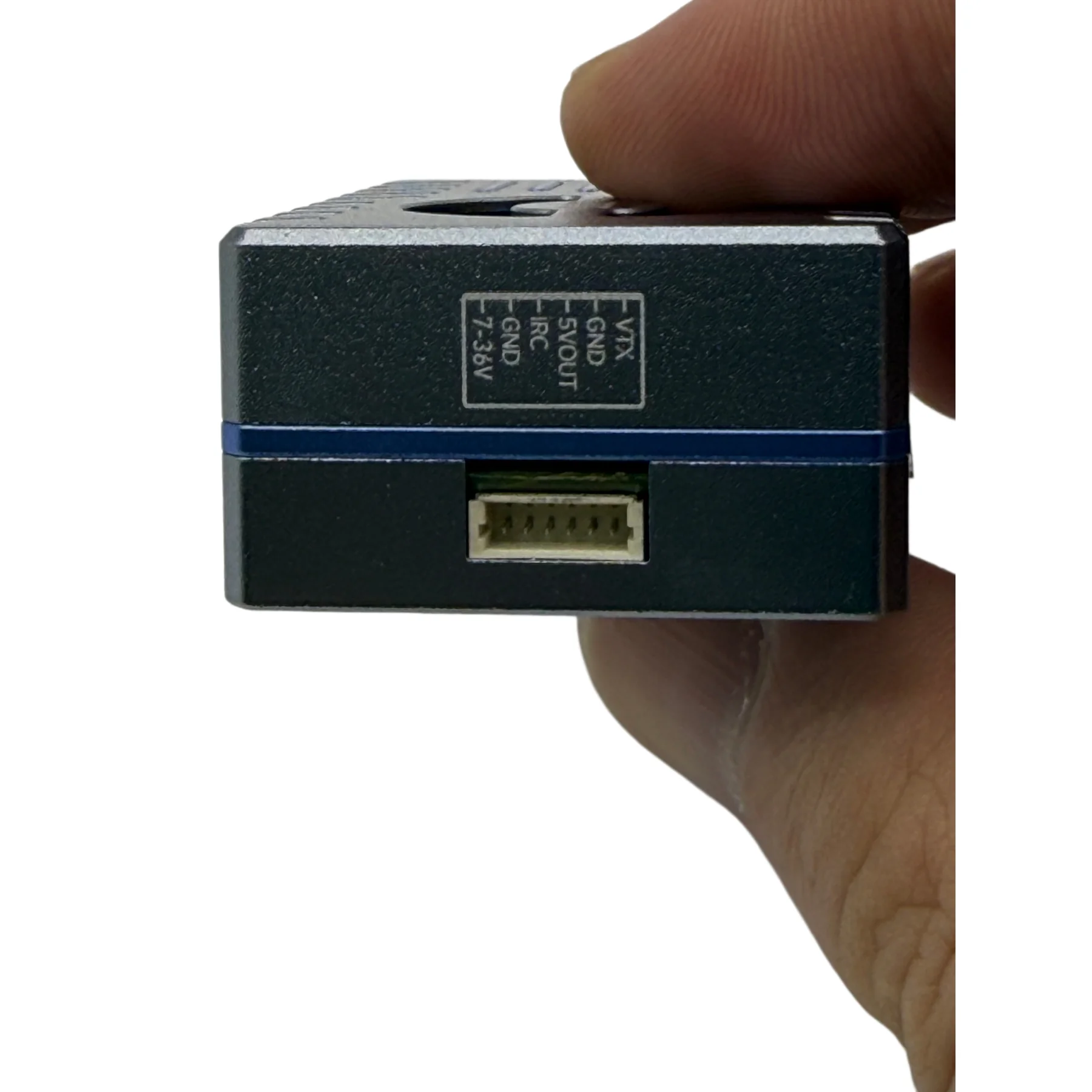

- Wide 9-36V Input Voltage — compatible with 2S-8S LiPo, onboard 4-level adjustable output
- Compact & Lightweight — only 32g, 47*32*18, easy to integrate into any airframe or gimbal

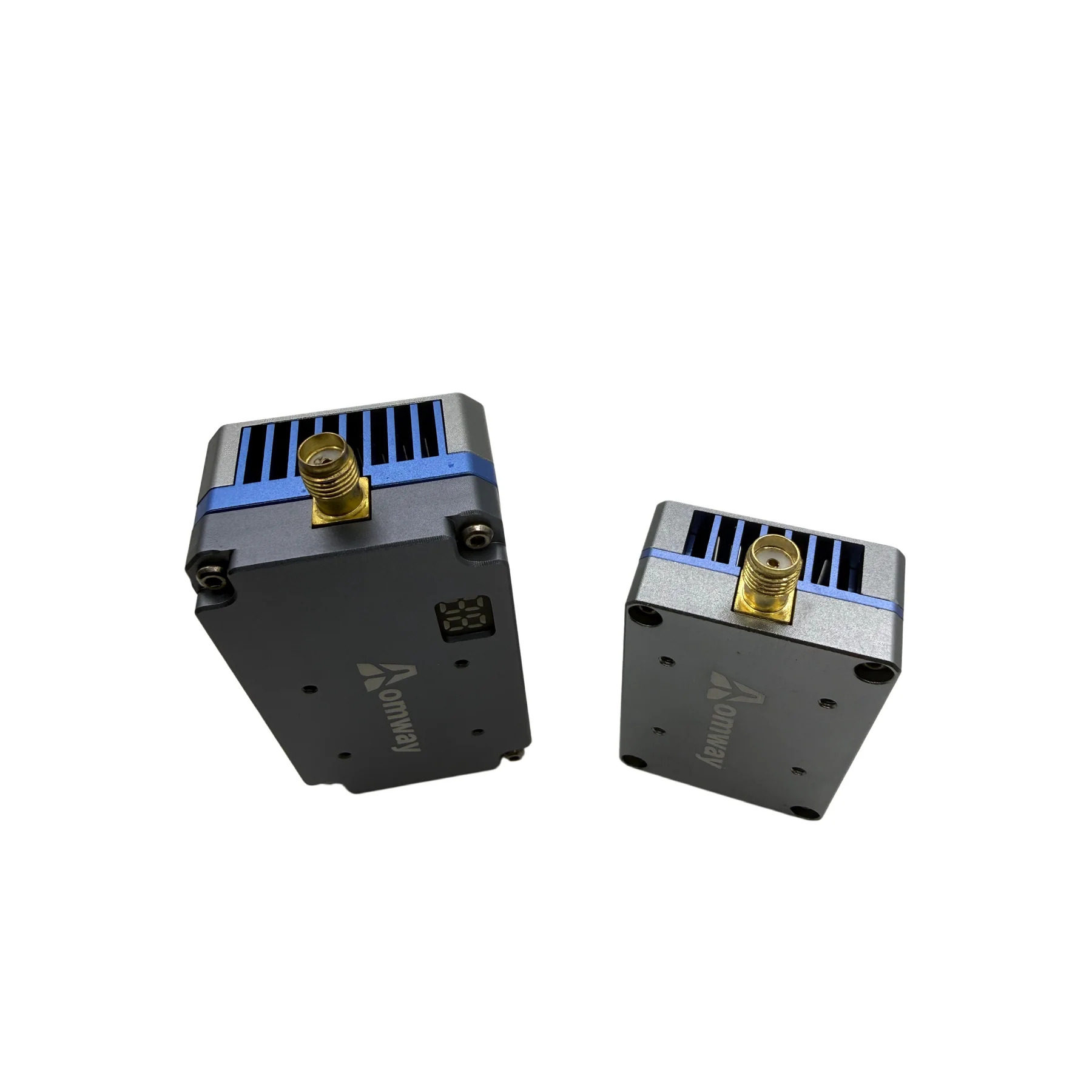

- RP-SMA Inner Hole Connector — standard antenna interface for tool-free installation
- Full Customization — custom frequency and power options available. No development fees. Free samples available.
Technical Specifications
| Parameter | Specification |
|---|---|

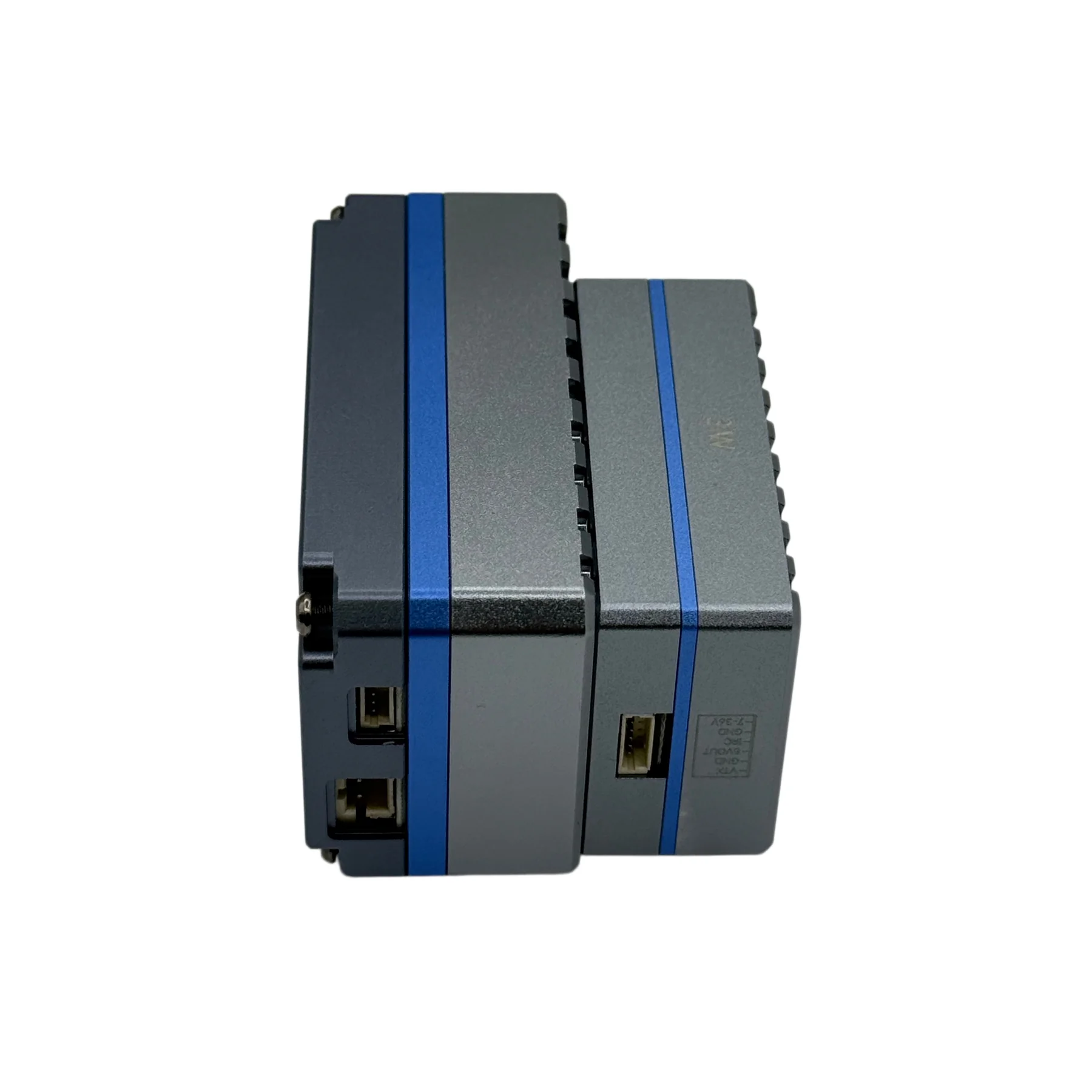

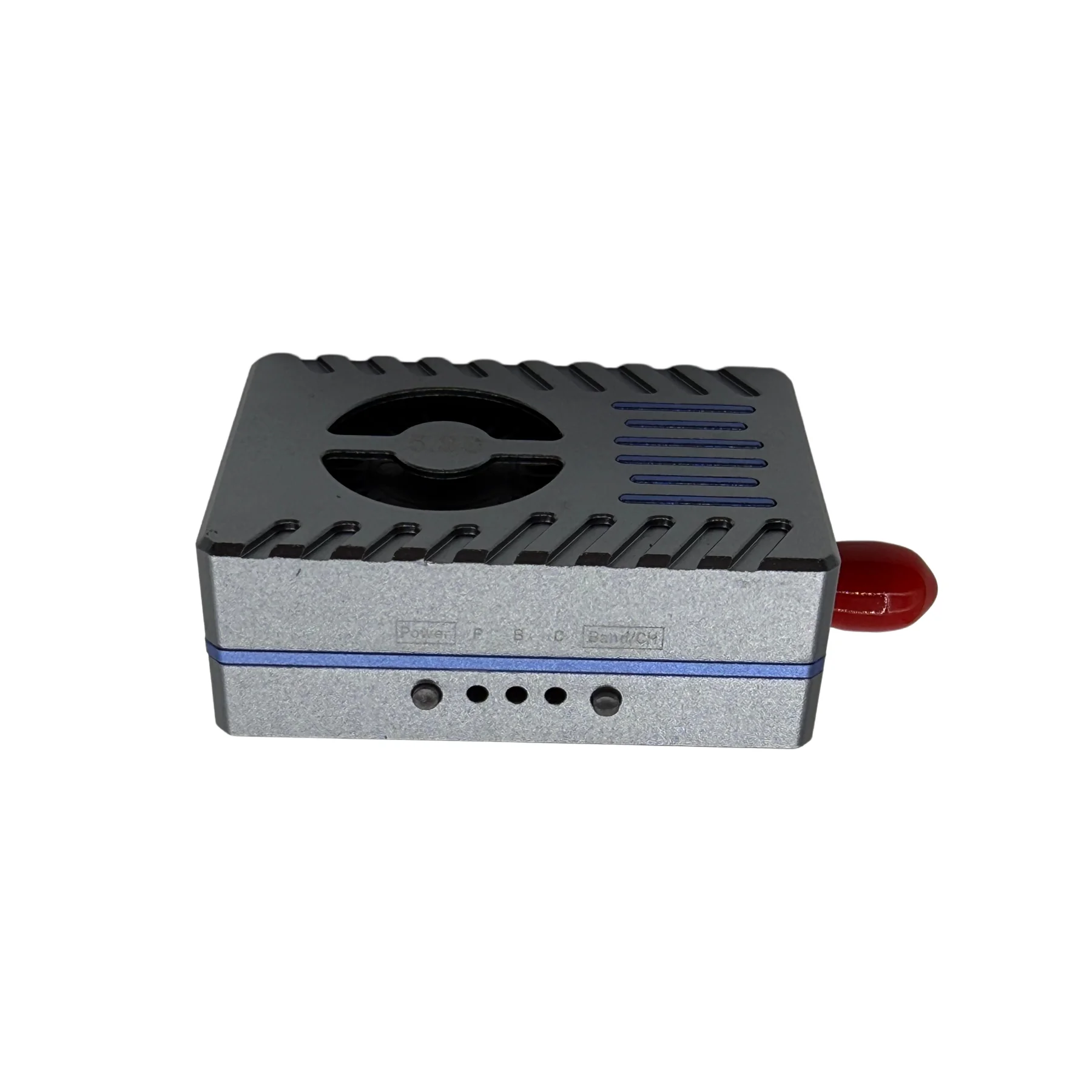

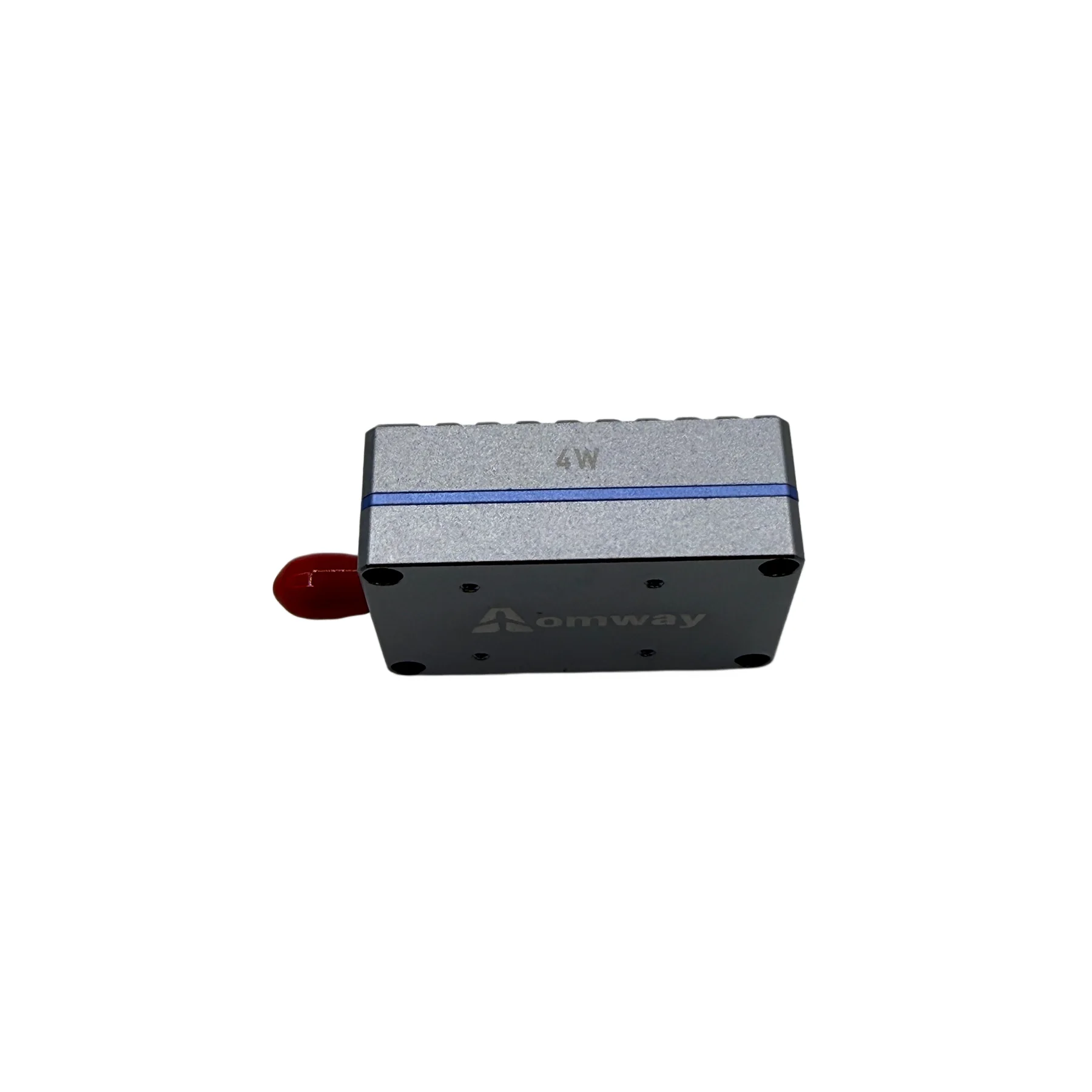

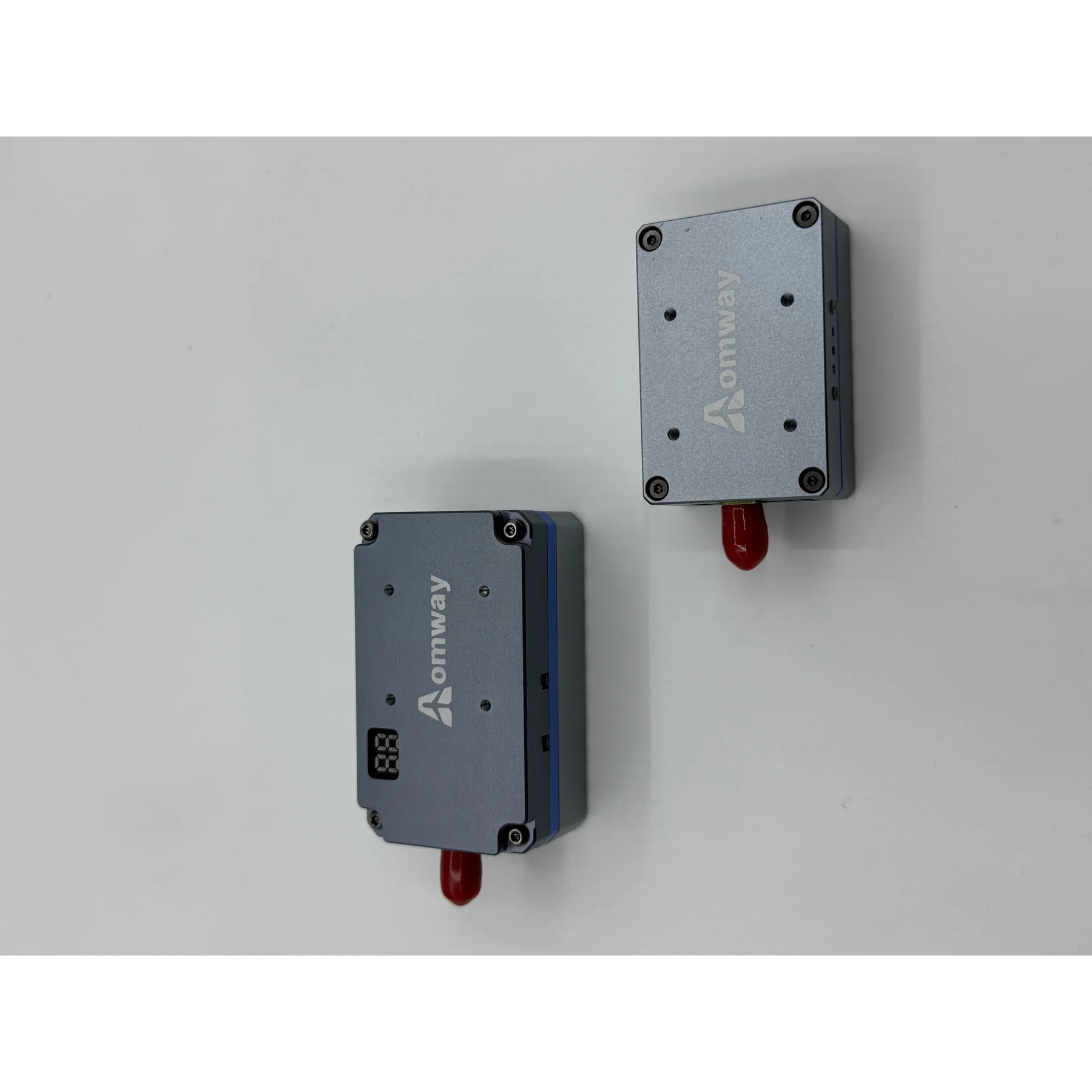

| Product Name | Aomway 4w vtx 1G to 9G |
| Frequency Range | 1-9 GHz (8001 channels) |
| Output Power | Up to 100W with external PA |
| Communication Range | 100+ km with external 100W PA |
| Input Voltage | 9-36V |
| Channels | 8001 |
| Control Protocol | IRC/Tramp |
| Antenna Connector | RP-SMA inner hole |
| Weight | 32g |
| Dimensions | 47*32*18 |
| SKU | Aomway vtx 1G to 9G |
Ready to fly farther? Explore the 4w vtx 1G to 9G from Aomway — engineered for reliable long-range video transmission. For inquiries or custom frequency/power requirements, contact us at info@aomway.com.
Aomway has been developing and manufacturing video transmission equipment for 15 years, accumulating extensive industry experience and massive test data. We can produce video transmission devices for any frequency band from 1 to 9 GHz, with power ranging from 3W to 15W. No development fees and free samples available. For inquiries, contact us at info@aomway.com.
