Aomway Optical Fiber Rewinding Machine

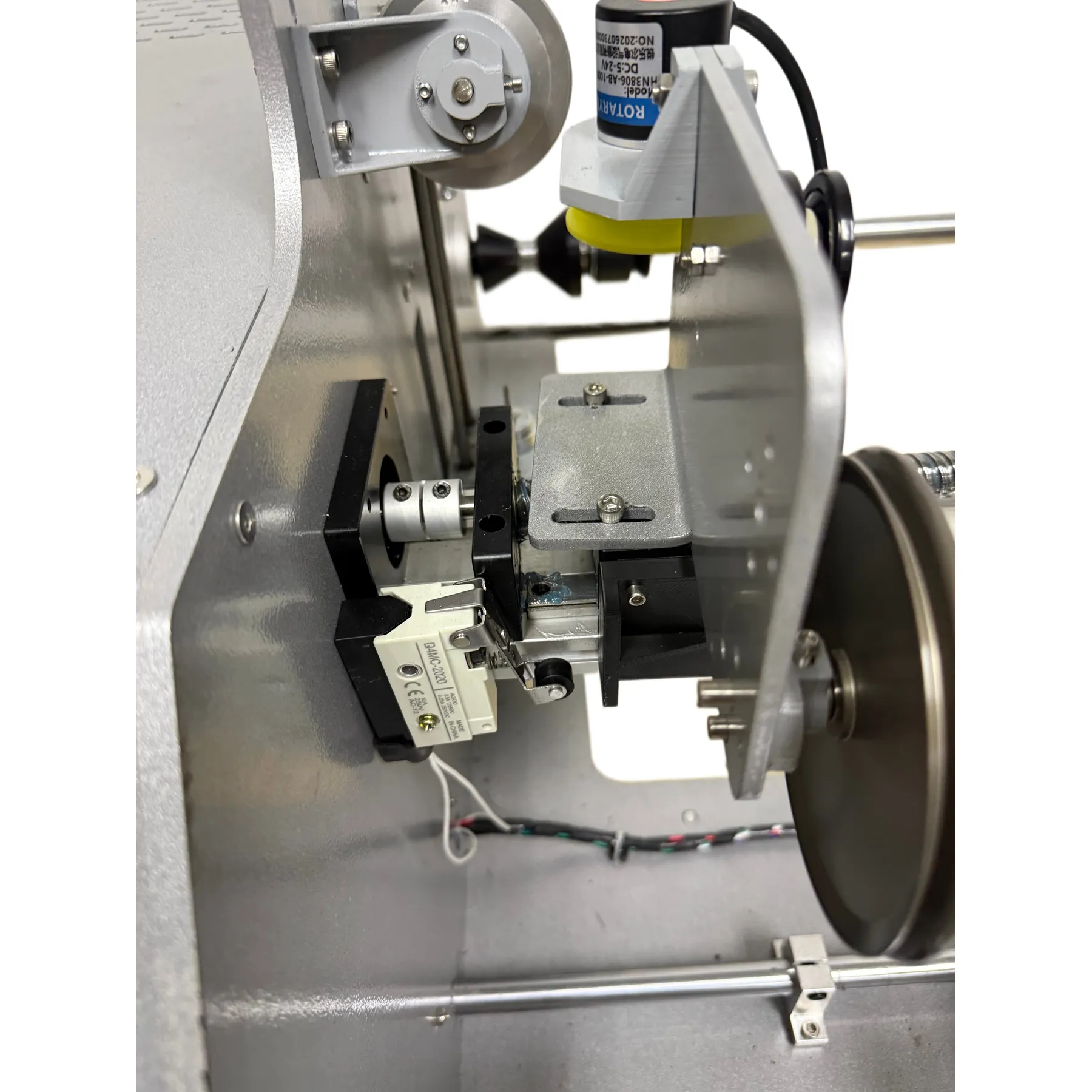

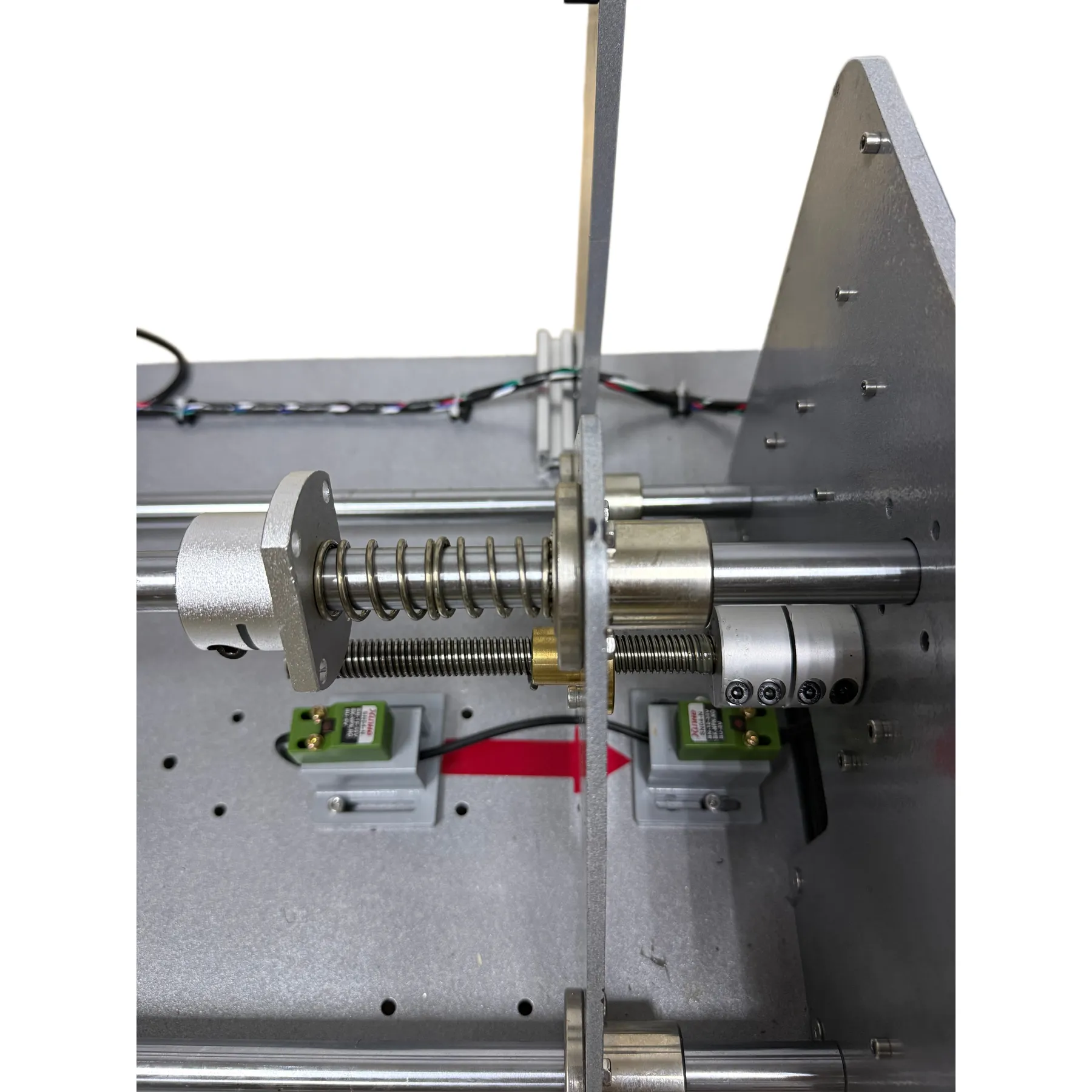

Advanced hardware configuration. Three PLC control systems, two servo motors, one stepper motor and one touchscreen — all from the top-tier brand INOVANCE. The pay-off shaft runs at 2,500 rpm with a maximum load of 30 kg, while the take-up shaft runs at 4,000 rpm, reaching a maximum rewinding speed of 600 m/min. A vertical gravity tensioner paired with a laser-positioned slider holds tension accuracy below 0.67 g, so the fiber does not jump and tension precision stays extremely high. The slide carriage is equipped with a reset calibration device, bringing the carriage to its highest precision level every time the machine starts. On the take-up shaft, an electric clamp automatically grips the spool, and a bidirectional infrared rangefinder raises clamping precision to the micron level. The whole system uses pulley-block transmission with titanium-alloy-coated pulleys, making wear on the optical fiber essentially negligible for true zero-loss rewinding. The machine weighs 85 kg and ships in a standard wooden crate on a pallet. Domestic delivery only; shipping is not included. On-site engineer guidance is available at an additional charge.

Key Features

• High-Speed Rewinding — rewinds optical fiber at up to 700 m/min for high-throughput spool production
• Consistent Tension Control — keeps winding tension even to avoid fiber damage or slippage
• Industrial-Grade Construction — rugged metal chassis built for continuous production use

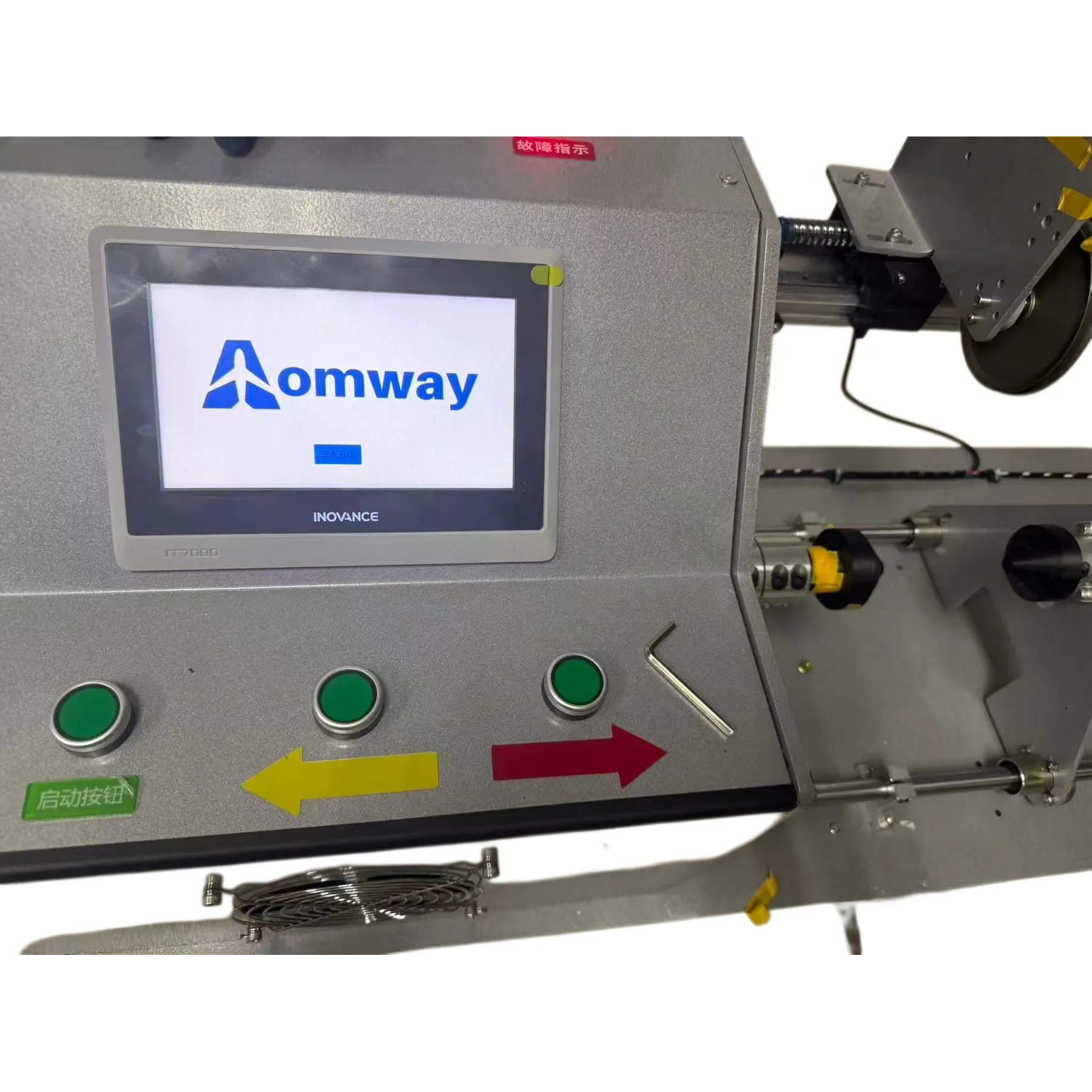

• Intelligent HMI Panel — INOVANCE IT7080 touchscreen with clear status and fault indicators
• Straightforward Operation — simple start/stop controls with visual fault indication

Technical Specifications
