12dBi High Gain — Concentrated signal strength for extended FPV range and clearer video feed
5.8GHz Full Band Coverage — Operates across 5500–6000MHz, compatible with all major FPV and WiFi protocols

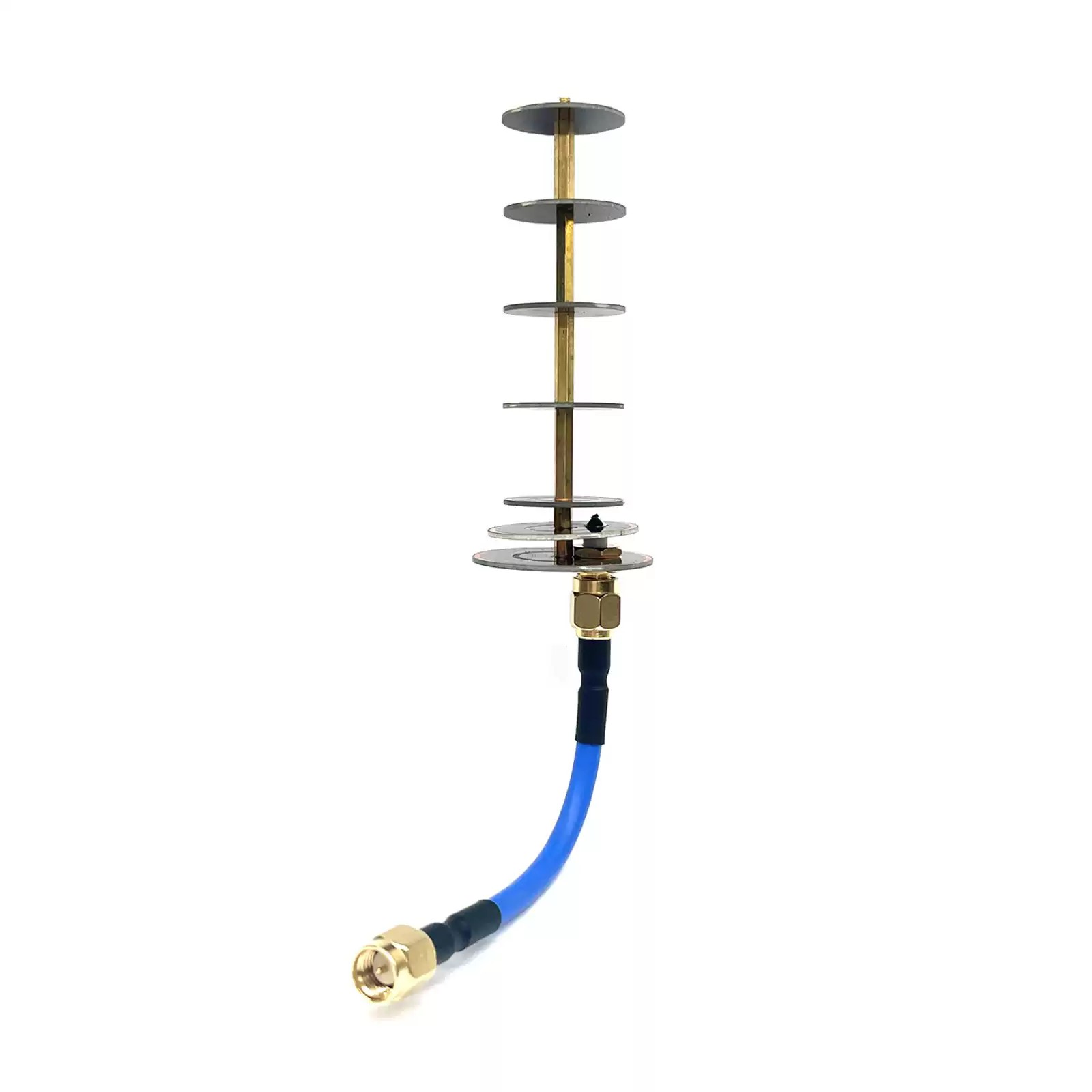

Yagi Directional Design — Optimized radiation pattern focuses energy where you need it most
SMA Male & RP-SMA Male Options — Works with most FPV goggles, receivers, and ground stations
60W Maximum Power — Handles high-power transmitters without degradation

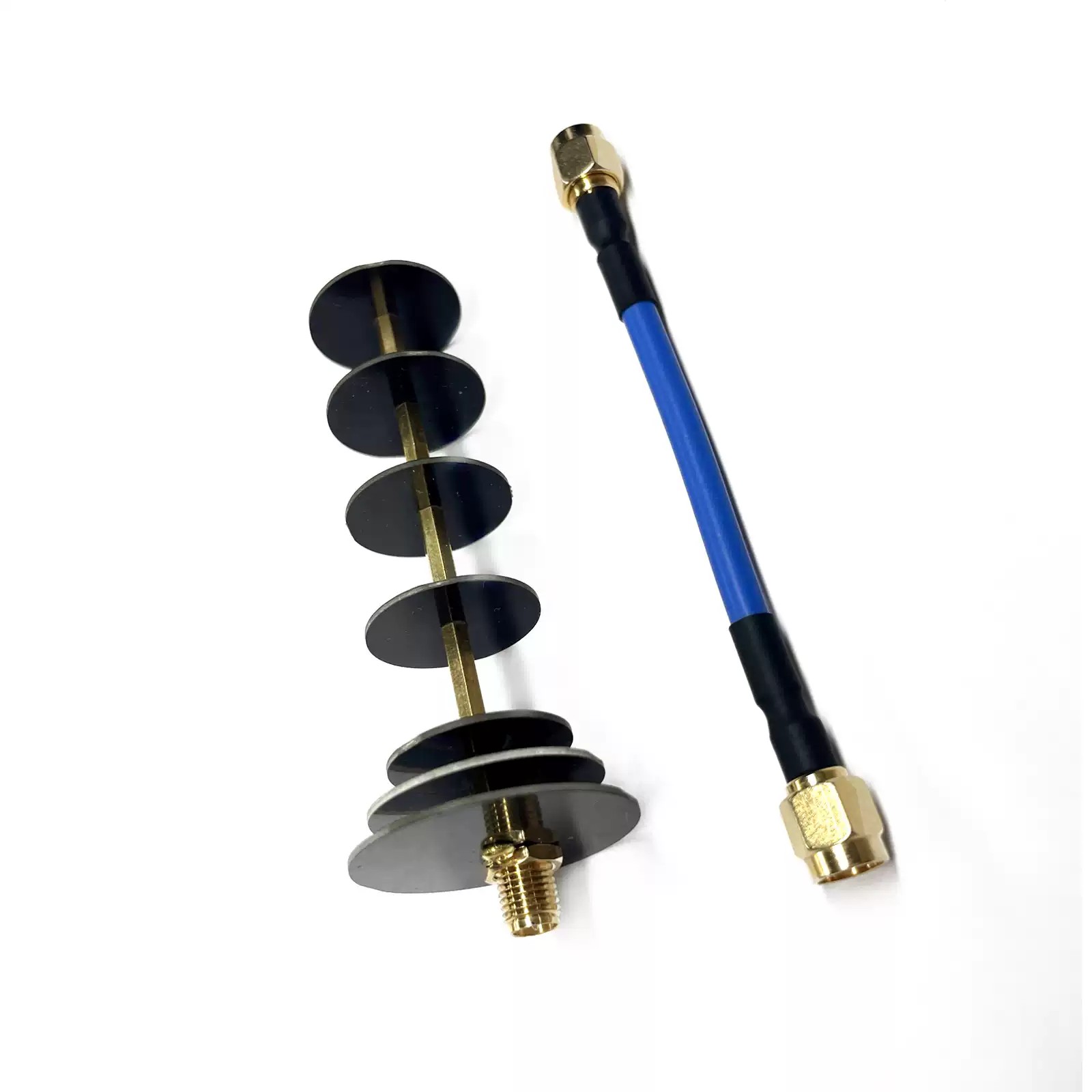

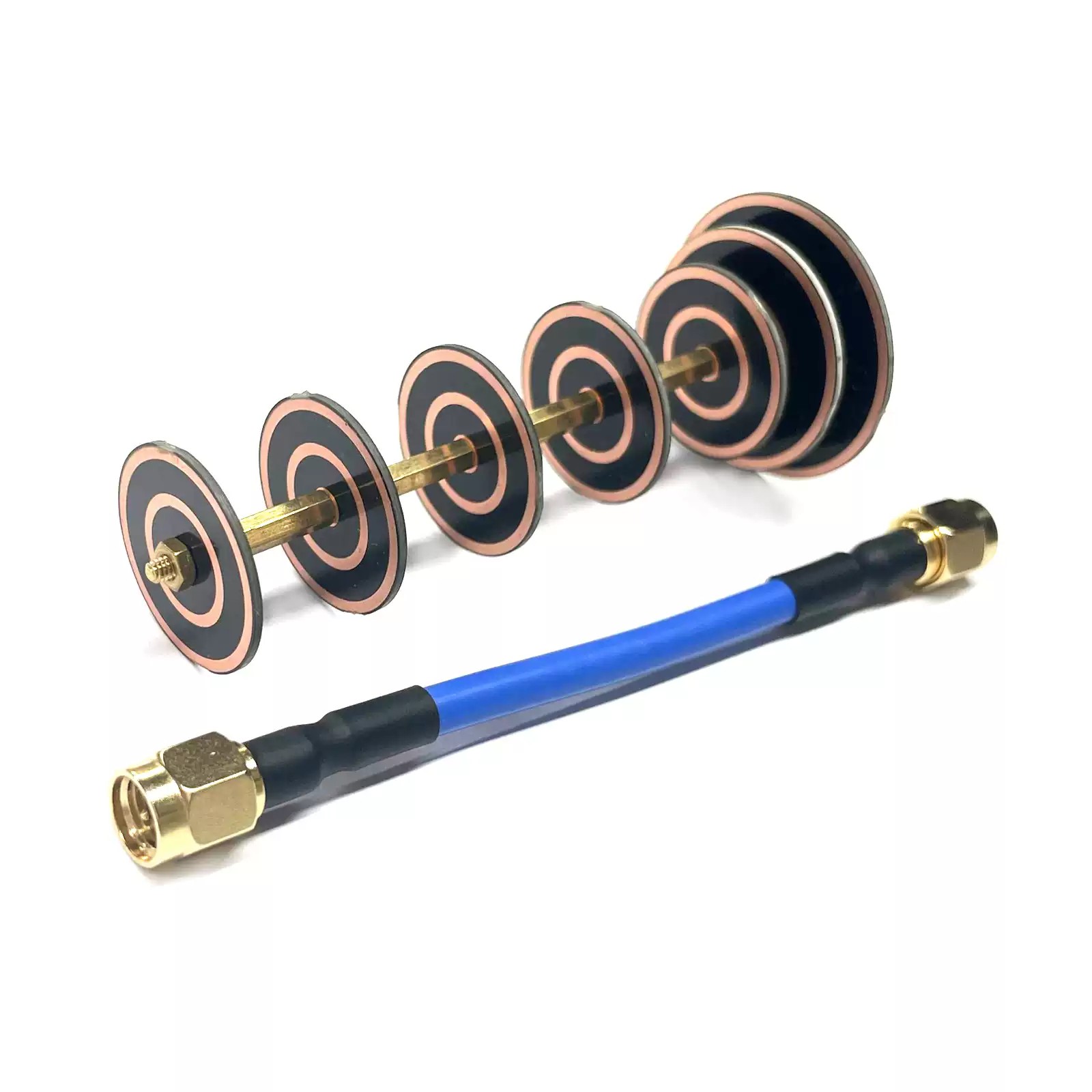

Compact & Lightweight — Ø30mm × 75mm, only 0.1kg with 100mm feed line

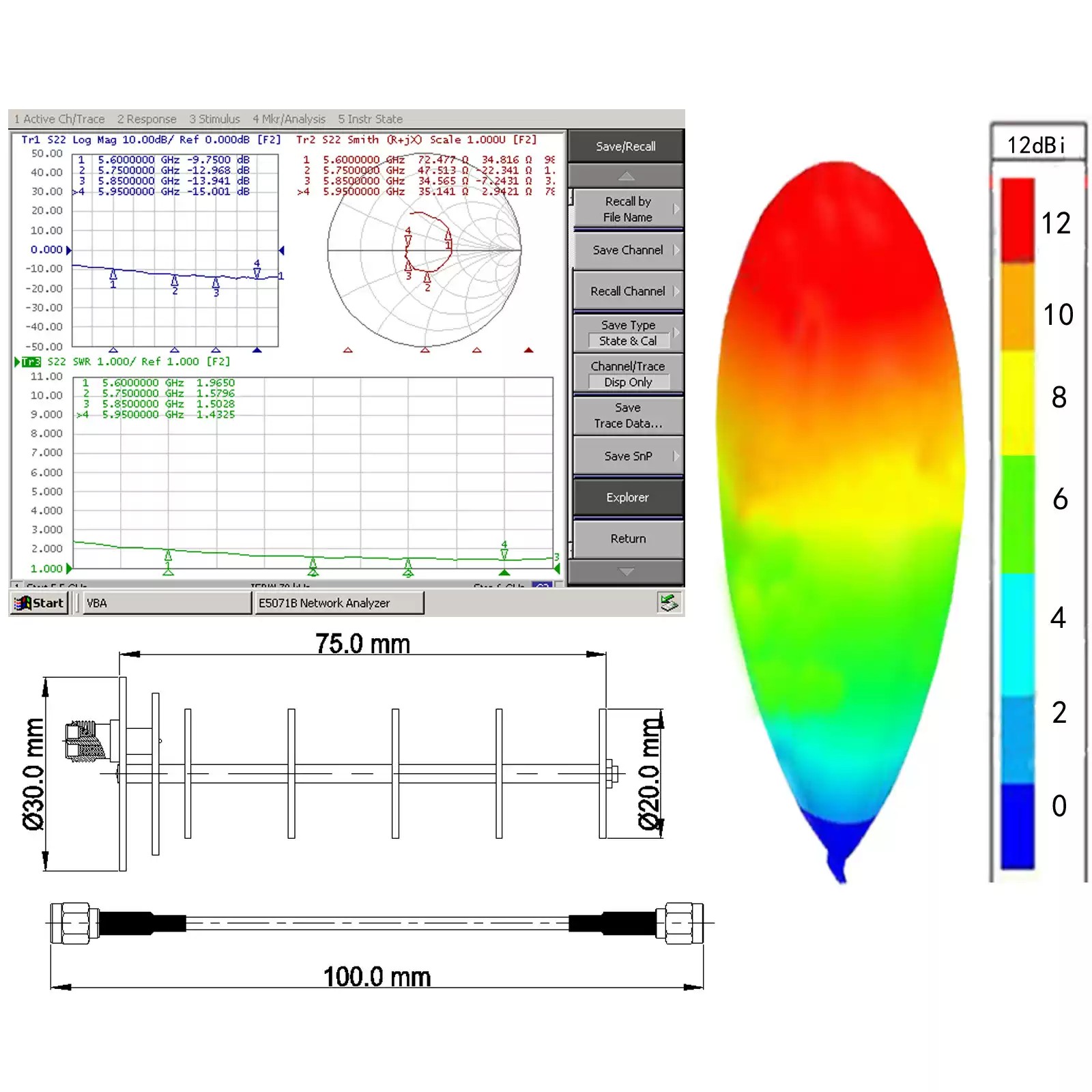

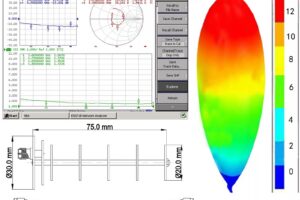

VNA Bench Tested — Every unit verified: SWR < 2.0 across the full band
-40°C to 85°C Rated — Built for real-world field conditions

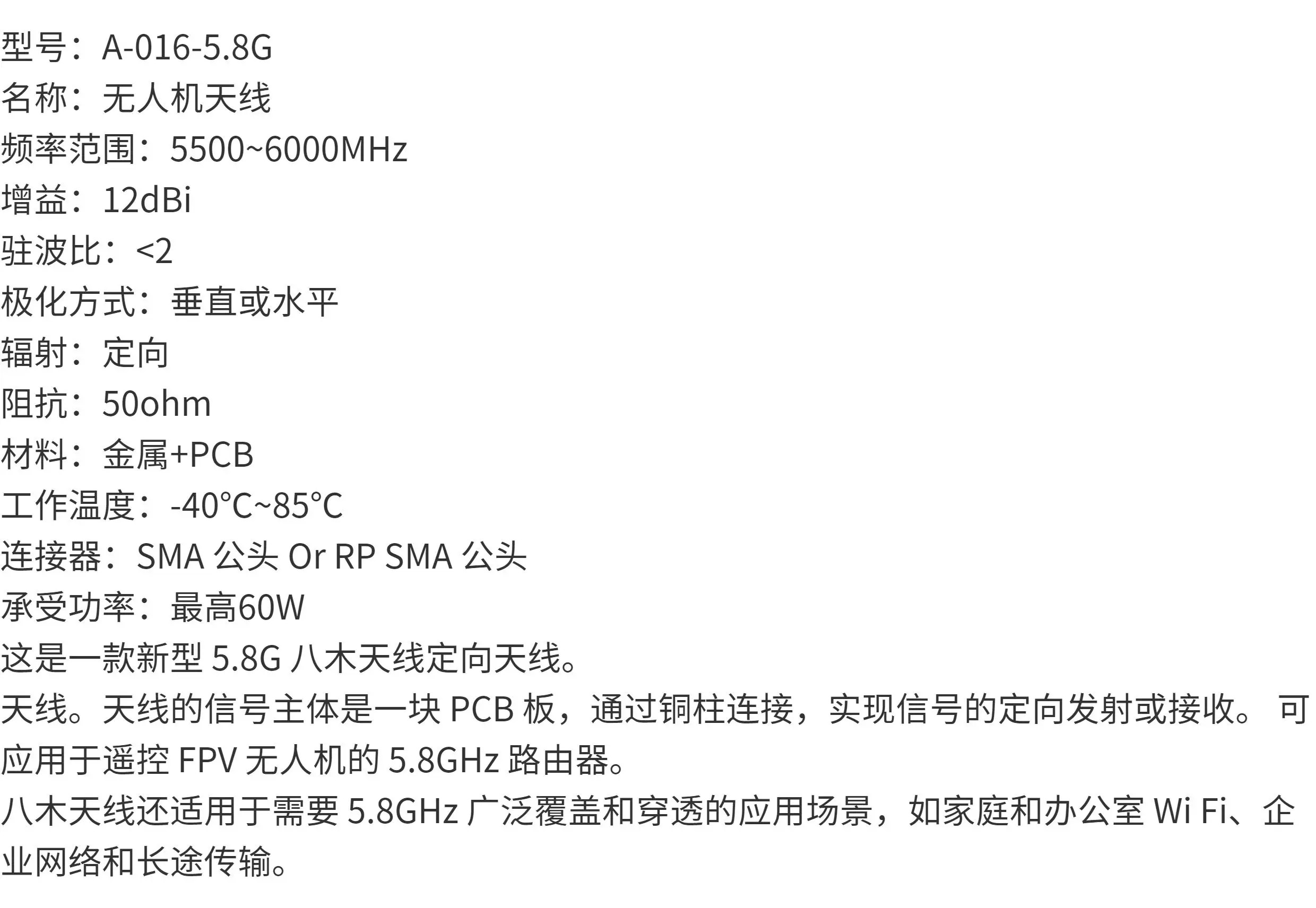

Technical Specifications
Parameter
Value
Frequency Range
5500 – 6000 MHz
Gain
12 dBi
VSWR (SWR)
< 2.0
Impedance
50 Ω
Polarization
Vertical or Horizontal
Radiation Pattern
Directional
Maximum Power
60W
Connector
SMA Male / RP-SMA Male
Dimensions
Ø30mm × 75mm
Feed Line
100mm
Operating Temp
-40°C ~ +85°C
Weight
0.1 kg
Applications
FPV drone racing and freestyle — improve video link clarity at distance
FPV long-range missions — extend effective range with focused beam
Ground station receiver — better signal pickup from airborne drones
WiFi 5.8GHz band — point-to-point or point-to-multipoint links
Frequency Plan & Pinout
Band and channel data below is taken from this unit’s own published specification table.
Item
Value
Frequency Range
5500 – 6000 MHz
Awaiting source data: the connector pinout drawing, the per-revision button / jumper sequence for band and power selection, and the downloadable PDF datasheet are not yet published for this model. Aomway will not print a wiring diagram it has not verified — request the engineering package and we will send the signed drawing for your hardware revision.
Also required for a complete install: a coax extension / antenna pigtail cut for this band, and an LC filter module for noisy power rails. Both are supplied on request — email [email protected] with your airframe and we will spec the correct length and connector.
