Engineers working on industrial video monitoring retrofits often run into these headaches:
1. Mines and cable production lines need to record depth / length data — traditional solutions require a PLC + acquisition module + a separate OSD overlay unit, three separate hardware systems with messy wiring and long development cycles;
2. In server rooms and energy storage facilities, temperature, humidity, voltage, and current data cannot be synced with the surveillance footage, leaving no visual evidence for later traceability;
3. Production-line part counting and flow statistics cannot be tied to the monitoring video, so quality issues cannot be cross-checked against output data;
4. Ordinary character overlay units on the market only display text — they have no measurement or acquisition functions, so new projects force you to rebuild the whole system.
Today we share the QL-X930H video graphic OSD overlay module, purpose-built for industrial monitoring scenarios. One module replaces multiple devices, requires no programming, and works with the vast majority of existing AHD/CVBS analog HD surveillance systems — dramatically cutting retrofit hardware and labor costs.
1. Basic Compatibility

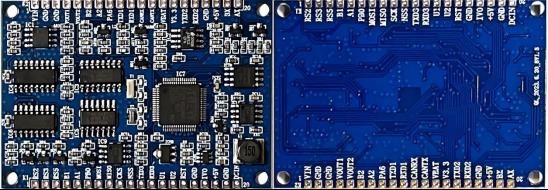

The QL-X930H is an industrial-grade OSD character overlay module compatible with 720P/1080P AHD and CVBS standard-definition video signals. It auto-adapts to the camera’s picture parameters on connection — no video reconfiguration needed before use.
Module size: 65×45×1.6 mm, with three mounting options (through-hole, SMD, screw terminal) for easy integration into embedded devices and surveillance enclosures. Dual power options: direct 5V DC, or 5.5–26V wide-range input to suit industrial and data-center power environments.
2. Core Features for Full Industrial Monitoring Coverage
2.1 Incremental Encoder Length/Depth/Height Measurement with Power-Loss Memory
The onboard dedicated encoder interface connects directly to incremental rotary encoders for:
· Mine shaft depth, pit water level, and tunnel height measurement;
· Cable, textile, and production-line length metering; supports custom decimal places (0–3) and custom length units, with both hardware/software zero-reset and automatic power-loss count saving — no need to reset every boot.
2.2 Multi-Channel Counting + Analog Acquisition for Production Lines and Server Rooms
· Counting: compatible with active/passive photoelectric, Hall, and proximity switches for one-way/two-way part counting and flow statistics;
· Dual 12-bit ADC analog inputs: measure 0–3.3V voltage, or connect 4–20mA / 0–20mA sensor signals for data acquisition and on-screen overlay. (Note: this feature is provided free by the manufacturer; damage caused by incorrect wiring or over-voltage is not covered by warranty.);
· MODBUS-RTU RS485 bus: daisy-chain up to 3 RS485 sensors/transmitters on one bus to collect multiple environmental data points and overlay them on the live picture.
2.3 21 Built-in Measurement Graphics with Visual Alignment Calibration
Unlike plain text overlay units, the X930H includes 21 ruler graphics — straight lines, crosshair scales, circles, rectangles, and more. Up to 20 custom graphics can be overlaid simultaneously, with move, zoom, and power-on auto-load. Ideal for equipment alignment, dimensional calibration, and point marking, plus a communication protocol for crosshair move/clear/save.
2.4 Zero-Code Setup with Free PC Software
The manufacturer provides a free PC configuration tool — no user programming required. Configure the parameters in the vendor software and the module is ready to deploy.
Engineers with mine monitoring, production-line retrofit, or server-room projects can request the full datasheet, wiring diagrams, and PC software installer directly. Sample testing and batch custom development are supported.
